Plotting Pen

https://www.stepcraft.us/web/image/product.template/202207/image_1920?unique=ebb1dc8

69.00 69.0 USD 69.00

69.00

Not Available For Sale

    This combination does not exist.

    Plotting Pen

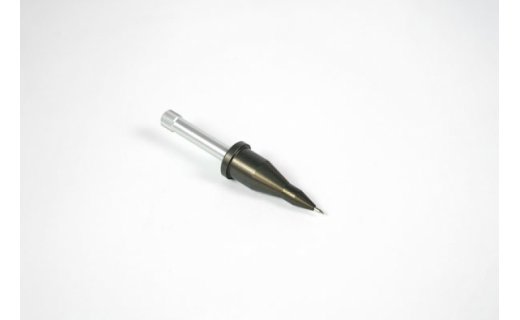

    This small pen enables you to write, draw or simply set markers with your CNC machine. The pen has a clamping surface of  ø 20 mm. It can easily be clamped with our adequate ø 43 mm - ø 20 mm adapter. Thanks to the cushioned lead, it creates a consistently good typeface. The spring power can be adjusted via the handscrew. Suitable for commercially available ball pen refills.

    NOTE: This tool requires the following two tool adapters to successfully work on the STEPCRAFT

    Please see this FAQ: http://cncfaq.us/ufaqs/what-is-the-mini-tool-adapter-p-10120-used-for/

    Part # 10120 – TOOL ADAPTER FROM Ø 20 MM TO Ø 8 MM FOR MINI TOOLS – $14.99

    Part # 10107 – TOOL ADAPTER FROM Ø 43 MM TO Ø 20MM (PROXXON)- $19.99


    Scope of Delivery:

    • 1x CNC Pen
    • 1x Stainless steel refill, black

    Support:

    Technical Specifications of the STEPCRAFT M.500 CNC System

    Machine's Footprint (Width, Length, Height)23" x 28.6" x 25.4"
    X-Travel13.7" (348 mm)
    Y-Travel21.4" (543.6 mm)
    Z-Travel7.63" (194 mm)
    Gantry Clearance (Z)
    8.07" (205 mm)
    Table Work Area (X, Y)
    20.2" x 25.6" (513 x 650.2 mm)
    Max Feed Rate283 in/min (120 mm/sec)
    Lead/Ball Screwsigus dryspin 12x5 mm (optional HIWIN ball screws 12x5 mm)
    Linear DriveBosch Rexroth ball bearing linear guides
    Stepper MotorsSanyo Denki NEMA 23 (1 on X and Z and 2 on Y axes)
    Positional Accuracy/Repeatability
    +/- 0.0009" (+/- 0.025 mm) w/igus dryspin
    +/- 0.0005" (+/- 0.015 mm) w/HIWIN ball screws
    Programmable Resolution
    +/- 0.0002" (+/- 0.00625 mm)
    Backlash
    +/- 0.0019" (+/- 0.05 mm) w/igus dryspin
    +/- 0.0012" (+/- 0.03 mm) w/HIWIN ball screws
    Weight
    48.5 lbs (22kg)
    Power Requirements
    110V-240V, 50-60 Hz, 180 watts
    (Comes with 110V USA plug)
    Interface
    USB 2.0 / Parallel (LPT1) / Network RJ-45
    Computer Requirements
    PC with 1Ghz Processor (Laptop, Desktop or All-in-One), USB 2.0 interface, Windows 7 or higher (32/64 bit) OR MAC OS X 10.3.9 or higher with Windows emulation (Parallels or BootCamp)


    Scope Of Delivery

    • The M-Series machine will arrive completely ready to run.  If you ordered a DIY Kit then it will come with all necessary mechanical and electrical components.
    • UCCNC control software
    • UC100 Parallel to USB interface
    • USB Cable
    • Power supply with 110V USA power cable
    • 3 x Flexi Guides™
    • WERA Tool Set
    • Operating Manual
    • Detailed assembly manual


    Required Tools

    • WERA tool set (Included in the DIY Kit)
    • 5.5 mm box wrench
    • Wire Cutter
    • Long-nose pliers
    • Cutter Knife
    • Digital Calipers
    • 3-in-1 oil and grease


    System Requirements

    • PC with 1GHz processor
    • USB Interface (Optional Ethernet)
    • Windows XP or higher (32/64 bit)
    • MAC OS X 10.3.9 or higher with Windows Emulation
