Horizontal Toggle Clamp for Q-Series (Large)

https://shop.stepcraft.us/web/image/product.template/202658/image_1920?unique=b7fe200

70.00 70.0 USD 70.00

70.00

Not Available For Sale

    This combination does not exist.

    Description

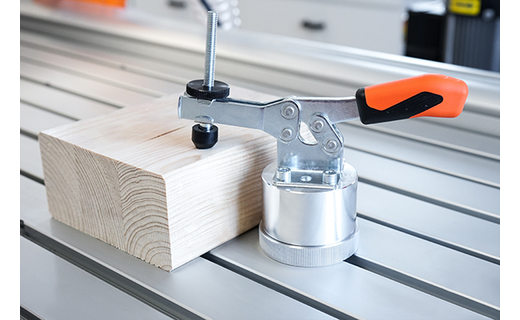

    The Horizontal Toggle Clamp allows the variable, tool-free clamping of various workpieces. For this purpose it is attached to the T-slot table of the STEPCRAFT Q-Series with its M8 thread. Due to its ergonomic, oil-resistant handle, large grip surface and the lockable knurled nut for the thrust bolt at the end of the clamping arm, the Horizontal Toggle Clamp is easy and comfortable to use.




    FEATURES

    • Open clamping arm
    • Galvanized and passivated

    • Length with lever: 165 mm

    • Height: 90 mm
    • Clampable workpiece height: 4 - 54 mm
    • Tool-free adjustable / clampable
    • For T-slot with 10 mm slot width (Q-Series)
