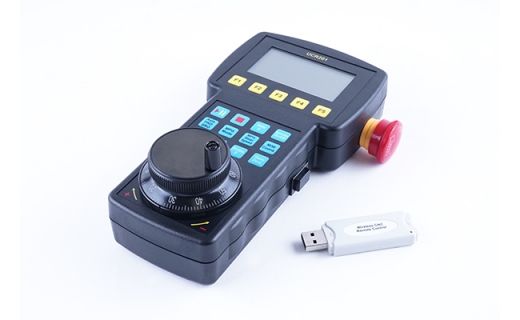

UCR201 Jog Pendant for UCCNC
Description
The Remote Control was specifically designed for the use with UCCNC and allows for a comfortable and wireless setup of your STEPCRAFT CNC System. It enables you not only to select up to six axes, set zero points but also to switch the spindle on and off as well as to process additional machining routines. For these purposes, the readout values of the axis positions, the stepping mode and the current speed of the spindle are displayed on the integrated LCD screen. Additionally, the UCR201 Remote Control is equipped with an emergency-stop functionality.
Please take into consideration that the UCR201 Jog Pendant is not suitable for the use with WinPC-NC. For the use of the UCR201 Jog Pendant you need to install the current version of UCCNC, at least version 1.20.48.
Features:
- Wireless Remote Control
- Range: 10-15 m (depending on environment)
- 4 axes displayed on screen (up to 6 axis selectable)
- LCD screen with backlight
- Connection with PC via USB WiFi transmitter
- Handwheel encoder and buttons
- Battery operated
Technical Specifications of the STEPCRAFT M.500 CNC System
Machine's Footprint (Width, Length, Height) | 23" x 28.6" x 25.4" |
X-Travel | 13.7" (348 mm) |
Y-Travel | 21.4" (543.6 mm) |
Z-Travel | 7.63" (194 mm) |
Gantry Clearance (Z) | 8.07" (205 mm) |
Table Work Area (X, Y) | 20.2" x 25.6" (513 x 650.2 mm) |
Max Feed Rate | 283 in/min (120 mm/sec) |
Lead/Ball Screws | igus dryspin 12x5 mm (optional HIWIN ball screws 12x5 mm) |
Linear Drive | Bosch Rexroth ball bearing linear guides |
Stepper Motors | Sanyo Denki NEMA 23 (1 on X and Z and 2 on Y axes) |
Positional Accuracy/Repeatability | +/- 0.0009" (+/- 0.025 mm) w/igus dryspin +/- 0.0005" (+/- 0.015 mm) w/HIWIN ball screws |
Programmable Resolution | +/- 0.0002" (+/- 0.00625 mm) |
Backlash | +/- 0.0019" (+/- 0.05 mm) w/igus dryspin +/- 0.0012" (+/- 0.03 mm) w/HIWIN ball screws |
Weight | 48.5 lbs (22kg) |
Power Requirements | 110V-240V, 50-60 Hz, 180 watts (Comes with 110V USA plug) |
Interface | USB 2.0 / Parallel (LPT1) / Network RJ-45 |
Computer Requirements | PC with 1Ghz Processor (Laptop, Desktop or All-in-One), USB 2.0 interface, Windows 7 or higher (32/64 bit) OR MAC OS X 10.3.9 or higher with Windows emulation (Parallels or BootCamp) |
Scope Of Delivery
- The M-Series machine will arrive completely ready to run. If you ordered a DIY Kit then it will come with all necessary mechanical and electrical components.
- UCCNC control software
- UC100 Parallel to USB interface
- USB Cable
- Power supply with 110V USA power cable
- 3 x Flexi Guides™
- WERA Tool Set
- Operating Manual
- Detailed assembly manual
Required Tools
- WERA tool set (Included in the DIY Kit)
- 5.5 mm box wrench
- Wire Cutter
- Long-nose pliers
- Cutter Knife
- Digital Calipers
- 3-in-1 oil and grease
System Requirements
- PC with 1GHz processor
- USB Interface (Optional Ethernet)
- Windows XP or higher (32/64 bit)
- MAC OS X 10.3.9 or higher with Windows Emulation
