Dust Collection Exhaust Adapter for D-Series w/Hose

https://shop.stepcraft.us/web/image/product.template/203791/image_1920?unique=1861851

219.00 219.0 USD 219.00

219.00

Not Available For Sale

    This combination does not exist.

    Description

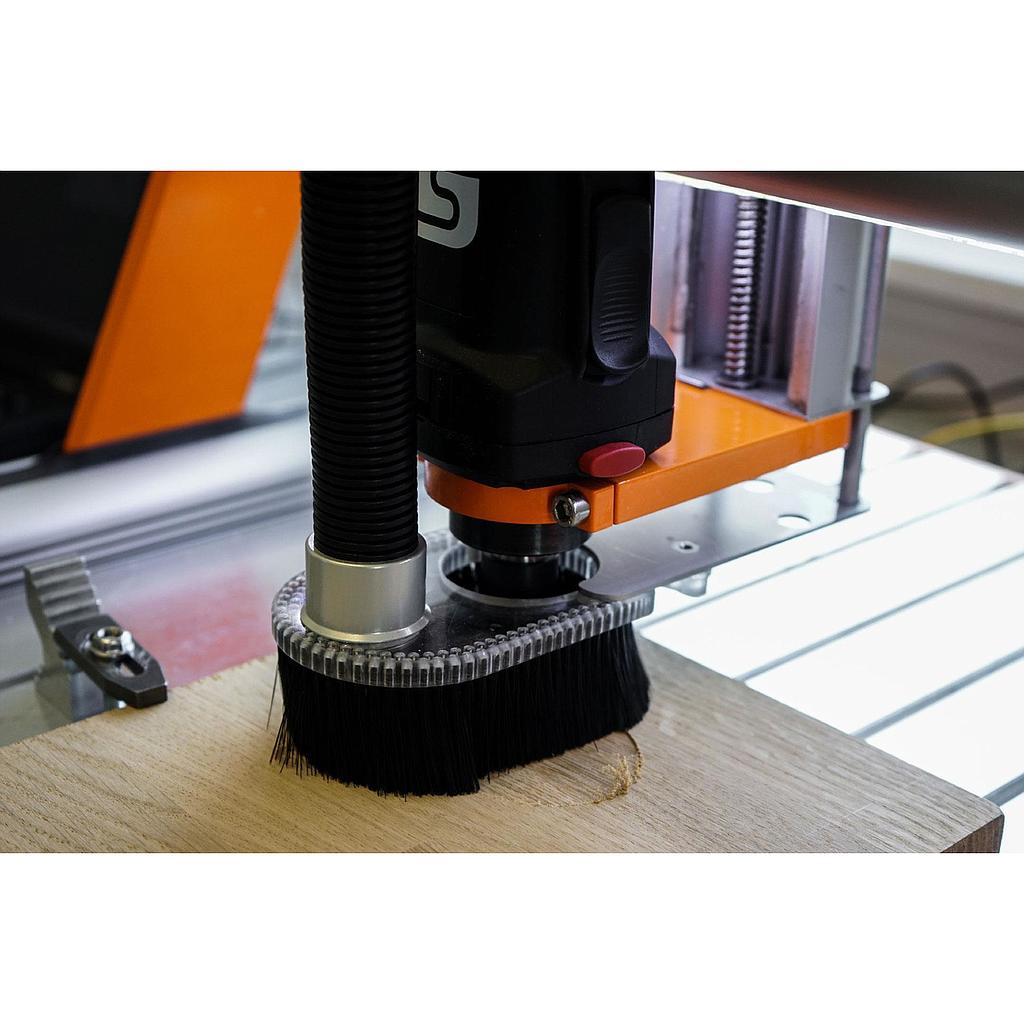

    The universal exhaust adapter for your STEPCRAFT D-Series! Suitable for all milling motors with clamping collar 43 mm.

    The suction shoe is attached with four neodymium magnets which allow for a quick and easy assembly and disassembly. Thanks to the automatic height compensation of 34 mm (Z direction), the exhaust adapter adjusts optimally to the respective workpiece material while the robust double row brushes provide a very good sealing. The guide is attached to the Z-axis and can be upgraded easily. Additionally, the exhaust adapter can be fixed in the upper position for maintenance works with the clamping lever.

    Note: The universal exhaust adapter is suitable for STEPCRAFT D-Series models D.300 - D.600 version 1 and STEPCRAFT D-Series models D.300 - D.840 version 2. This adapter is not designed to be used with the Dewalt Spindle Adapter..





    Scope of delivery
    • Exhaust adapter (magnetic)
    • Complete guide mechanism
    • Extraction hose 2



    PRODUCT FAQ:



    How Do I Connect This To My Shop Vac?

    A: The diameter of the hose that comes with this system is metric but a 1" adapter will work fine to connect it to your shop vac.
    We recommend this adapter which you can buy from Home Depot for less than $12  - LINK HERE





    What Size Shop Vac Do I Need For This Dust Collection System?

    A: You do not need a large shop vac for this system since the overall flow is limited to the diameter of the hose.  This system works perfectly with a small vacuum such as the Rigid SH06001 model from Home Depot, which is a 3.5HP Vacuum for less than $60 - LINK HERE
