Description

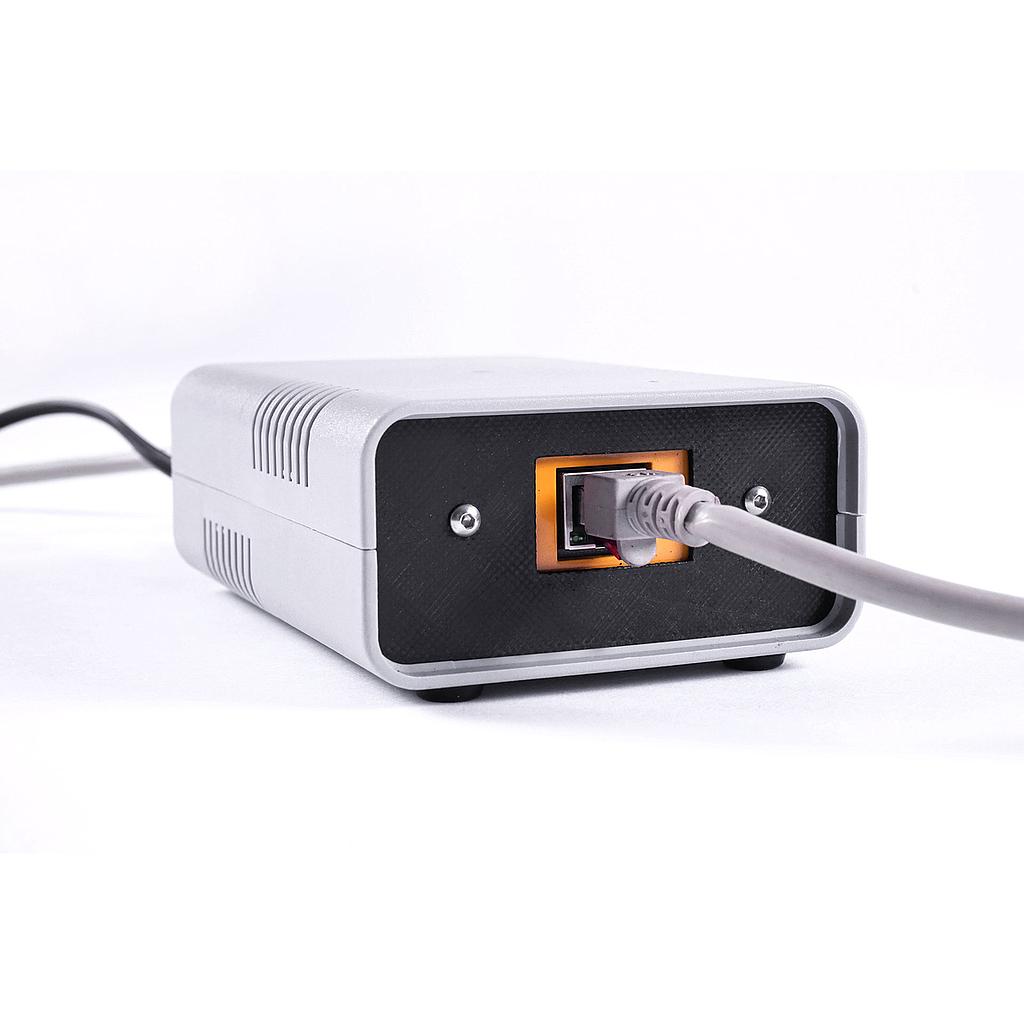

The UC-400ETH is a CNC machine controller with Ethernet interface (RJ45). The machine controller can communicate with the network card of the computer using a network cable. The connection can be directly between the UC-400ETH and the computer/network card or via a router/switch.The machine controller UC-400ETH is compatible with the STEPCRAFT machines of the D-, M- and Q-Series and is simply connected to the LPT1 connection of the machine control.
Technical features
- Ethernet connection between the machine control and computer
- Simultaneous control of up to six axes
- Operation with a step frequency of up to 400kHz
- Double standard LPT signal output
- Compatible with UCCNC and Mach3 control software
- Intermediate buffering of the signal data for fast and reliable communication
- 1x Connection box with the integrated UC-400ETH motion controller
- 1x Ethernet cable, length 1 m
- 1x Parallel cable (LPT1), length 1 m
- 1x Power supply AC 120-240 V, DC 12 V, 1000 mA
- 1x Software License UCCNC
