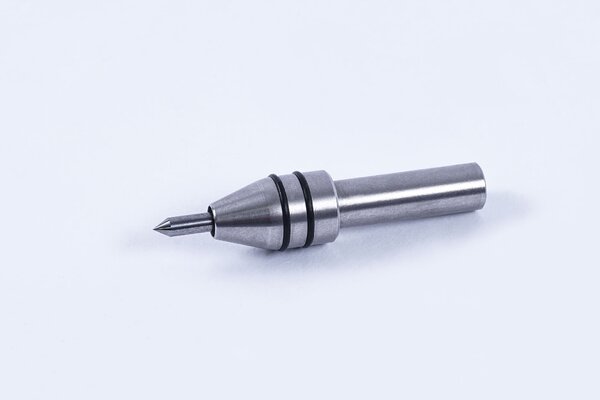

The specially developed CNC engraving tip enables you to engrave even the smallest details in excellent quality. You can use the engraving tip to process a wide variety of materials: from plexiglass and plastic to brass and aluminum to steel or stainless steel. Thanks to the spring inside, the engraving tip can compensate for height differences of approx. 3-4 mm. In this way, even curved surfaces can be engraved! The engraving tip is clamped using an 8 mm collet or a clamping adapter.
For operation, you need the clamping adapter 43 to 20 mm (Proxxon) as well as the clamping adapter 20 to 8 mm.
The matching diamond tip is optionally available.
- Tungsten carbide tip
- Clamping in 8 mm holder (collet, adapter)
- Spring-loaded tip
Scope of delivery:
- 1 x mini engraving tip
- 1 x tungsten carbide tip
