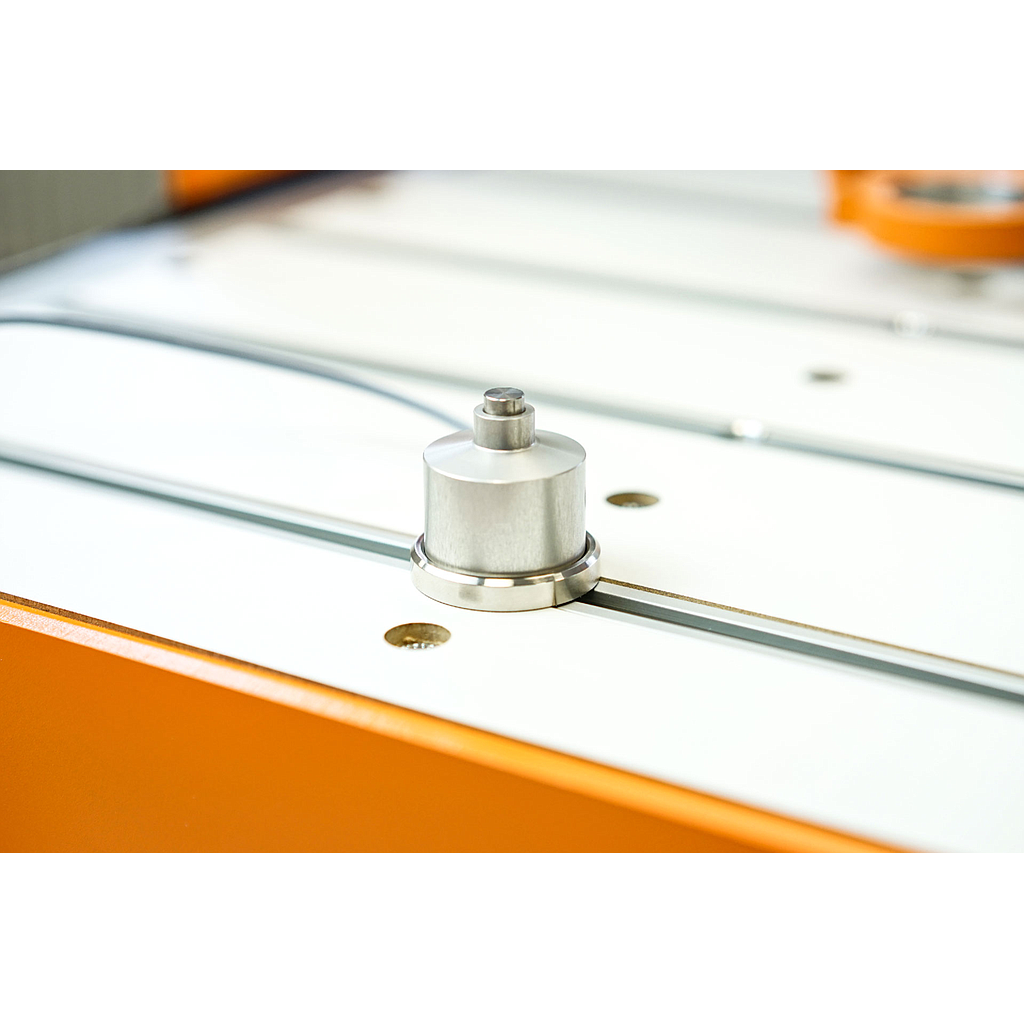

The Tool Length Sensor is used to accurately set your tool length and Z-Zero for your jobs. You install the tool in the spindle and then set the Tool Length Sensor either on the top of your workpiece or on the bed of the machine under the tool. Pressing a Auto Touch-off button in UCCNC lowers the tool until it touches the sensor and saved the tool height information.
Note: If you want to operate the Tool Length Sensor with UCCNC, please contact support@stepcraft.us for an adjusted M31 macro.
Technical Specification:
Diameter: 32 mm
Height: 33 mm
Measure point diameter: 8 mm
Accuracy +-0.001"
Duty Cycles: 20,000 +
Switch: Open or close function
Material: Aluminum and brush (hard chrome)
Cable length: 6 feet
Fixable with two M4 screws
Weight: 95 g
Scope of Delivery:
Completely assembled tool length sensor w/3.5mm male jack
STRONG DRIVE SYSTEM
The STEPCRAFT M.1400 works with maximum precision and accuracy and runs quietly and vibration-free thanks to the use of HIWIN® ball screws . The powerful 4A NEMA 23 motors drive the CNC controlled machine powerfully through a wide variety of materials.
HIWIN® BALL SCREWS
- Can optionally be used instead of standard igus® dryspin threaded spindles
- They offer smoother and more precise movement of the CNC
- Balls roll between the threaded spindle and nut via the ball return system in an endless loop with zero backlash
- Suggested for applications where maximum precision and accuracy are needed
