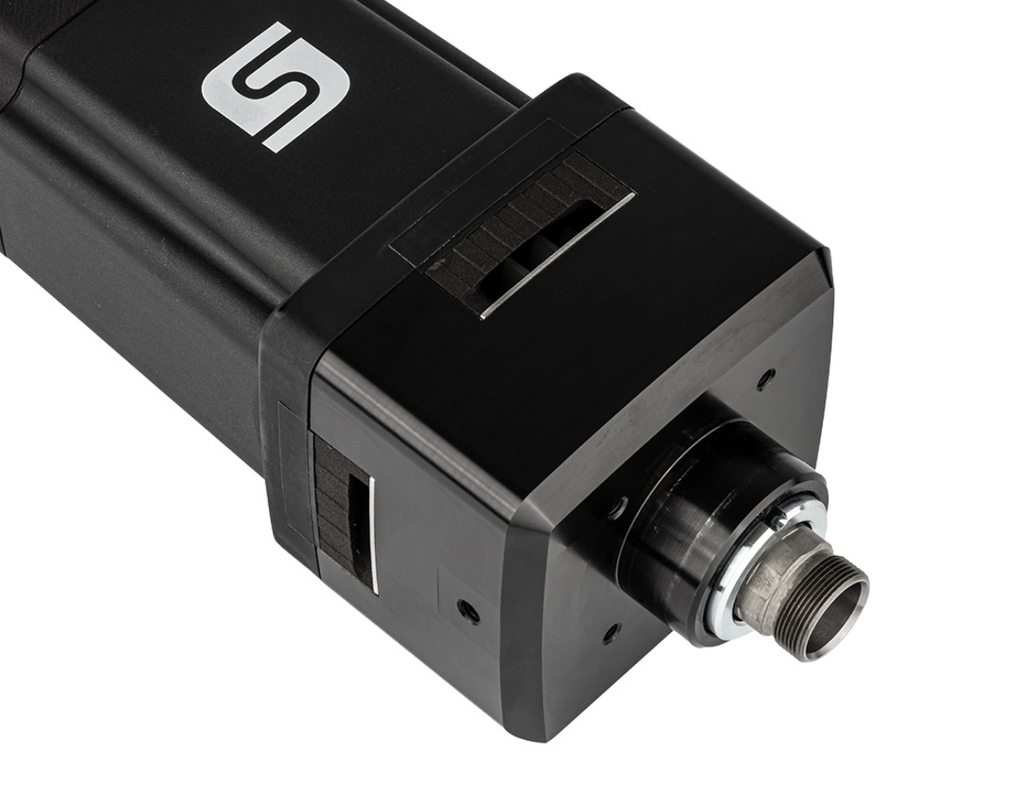

Milling Motor MM-1650-DI (US) for M-Series

https://shop.stepcraft.us/web/image/product.template/204788/image_1920?unique=2909b28

799.00 799.0 USD 799.00

799.00

Not Available For Sale

    This combination does not exist.

    DESCRIPTION

    If you are looking for the most powerful spindle you can get for a desktop/benchtop CNC, you have found it.  The MM-1650 DI spindle is Made In Germany to the highest standards.  The MM-1650 DI is a precision milling spindle that uses precise components, giving you maximum concentricity for even the most demanding precision work.  It has the capability of supporting up to 1/2" shank tooling with a maximum output of 2.2 horsepower. Additionally, the MM-1650 DI has a variable speed setting that can be controlled manually or via the gantry interface. The labyrinth seal protects the spindle and bearings against dust and debris. With a sound level of only 81 dB (A), the milling motor operates extremely silently.

    For use with the STEPCRAFT M-Series, the Mounting Kit MM-1650 DI for M-Series is necessary.

    Should you use a third-party CNC machine, please see the technical drawing in the product images to easily check whether the MM-1650 DI is suitable for your tool holder.


    Technical Details:

    • Input voltage (AC): 110 V
    • Rotary speed: 4.000 - 23.000 rpm
    • Power: 1650 W
    • Extremely silent: 81 dB (A)
    • Digital electronics with constant speed under load, soft start-up, idle speed reduction, and overload protection
    • Concentricity (cone):≤ 0,02 mm
    • Concentricity (end mill): ≤ 0,07 mm (25 mm distance to cone);
    • Labyrinth seal to protect spindle bearing against foreign particles
    • < />External gantry interface
    • For wood, metal, plastics, foam, polystyrene, stone
    • Weight: 3,16 kg

    Scope of Delivery:

    • 1x milling motor MM-1650 DI
    • 1x collet OZ12A .25"
    • 1x clamping nut
    • 1x spanner
    • 1x sensor cable 4 m incl. PWM converter
