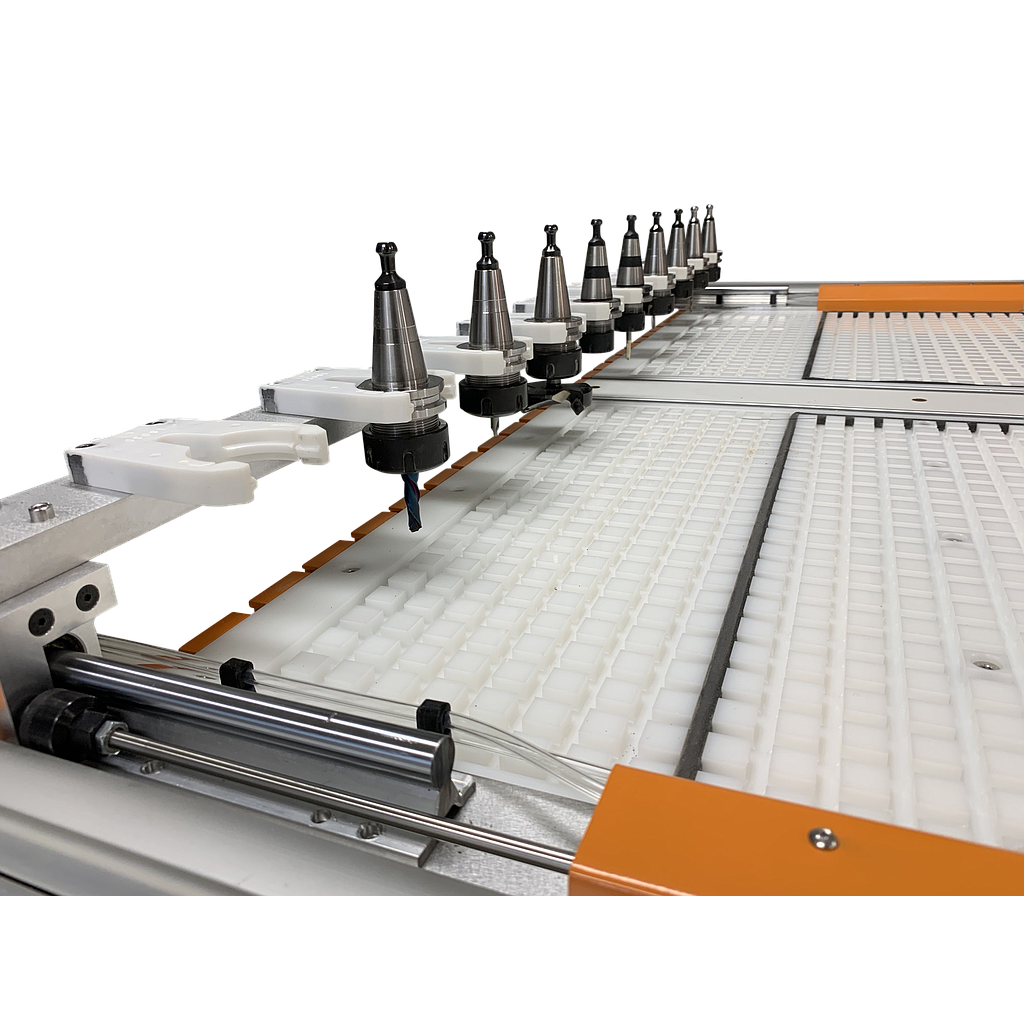

Automatic Sliding Tool Rack (Q.404 and Q.408)
Upgrade from standard, fixed, 4pc rear tool rack
This product is no longer available.
Providing More Usable Y-Axis On The Q.404 and Q.408 CNC Systems
When you buy a large format CNC system, you are looking to process the largest possible material you can. The new Pneumatic Sliding Tool Rack, gives you 7 more inches of usable space on the Y-Axis of the CNC when using the Automatic Tool Changer (ATC-2200 Spindle). The tool rack will support up to 10 ISO30 Tool Holders to give you maximum flexibility for automating your CNC projects.
The STEPCRAFT Q.408 CNC System has the smallest footprint out of any 4 x 8 foot CNC on the market. We know that space in many shops can be a premium and square footage is not cheap. It's innovations like Pneumatic Sliding Tool Rack, that make STEPCRAFT a world leader in CNC technology and solutions.
How It Works
When it is time to make a tool change, the tool rack will pneumatically slide forward to deliver the tool holder to the spindle and then retract out of the way after the spindle has to tool. When returning a tool, the tool rack will slide forward to engage the tool holder in the spindle allowing it to be released by spindle and move to pick up the next tool and then it will retract again to the rear of the machine.
Specifications
Number of Tools: 10
Tool Holder Type: ISO30 (ER32 or ER25)
Air Pressure Required: 110 PSI (taps into the air for the ATC-2200 Spindle)
Length of Travel: 7"
Retraction/Extension Time: 1.2 seconds
Technical Specifications of the STEPCRAFT M.500 CNC System
Machine's Footprint (Width, Length, Height) | 23" x 28.6" x 25.4" |
X-Travel | 13.7" (348 mm) |
Y-Travel | 21.4" (543.6 mm) |
Z-Travel | 7.63" (194 mm) |
Gantry Clearance (Z) | 8.07" (205 mm) |
Table Work Area (X, Y) | 20.2" x 25.6" (513 x 650.2 mm) |
Max Feed Rate | 283 in/min (120 mm/sec) |
Lead/Ball Screws | igus dryspin 12x5 mm (optional HIWIN ball screws 12x5 mm) |
Linear Drive | Bosch Rexroth ball bearing linear guides |
Stepper Motors | Sanyo Denki NEMA 23 (1 on X and Z and 2 on Y axes) |
Positional Accuracy/Repeatability | +/- 0.0009" (+/- 0.025 mm) w/igus dryspin +/- 0.0005" (+/- 0.015 mm) w/HIWIN ball screws |
Programmable Resolution | +/- 0.0002" (+/- 0.00625 mm) |
Backlash | +/- 0.0019" (+/- 0.05 mm) w/igus dryspin +/- 0.0012" (+/- 0.03 mm) w/HIWIN ball screws |
Weight | 48.5 lbs (22kg) |
Power Requirements | 110V-240V, 50-60 Hz, 180 watts (Comes with 110V USA plug) |
Interface | USB 2.0 / Parallel (LPT1) / Network RJ-45 |
Computer Requirements | PC with 1Ghz Processor (Laptop, Desktop or All-in-One), USB 2.0 interface, Windows 7 or higher (32/64 bit) OR MAC OS X 10.3.9 or higher with Windows emulation (Parallels or BootCamp) |
Scope Of Delivery
- The M-Series machine will arrive completely ready to run. If you ordered a DIY Kit then it will come with all necessary mechanical and electrical components.
- UCCNC control software
- UC100 Parallel to USB interface
- USB Cable
- Power supply with 110V USA power cable
- 3 x Flexi Guides™
- WERA Tool Set
- Operating Manual
- Detailed assembly manual
Required Tools
- WERA tool set (Included in the DIY Kit)
- 5.5 mm box wrench
- Wire Cutter
- Long-nose pliers
- Cutter Knife
- Digital Calipers
- 3-in-1 oil and grease
System Requirements
- PC with 1GHz processor
- USB Interface (Optional Ethernet)
- Windows XP or higher (32/64 bit)
- MAC OS X 10.3.9 or higher with Windows Emulation
