Laser Engraving Head DL445 3 Watt

https://shop.stepcraft.us/web/image/product.template/52/image_1920?unique=b7fe200

699.00 699.0 USD 699.00

699.00

Not Available For Sale

    This combination does not exist.

    Description

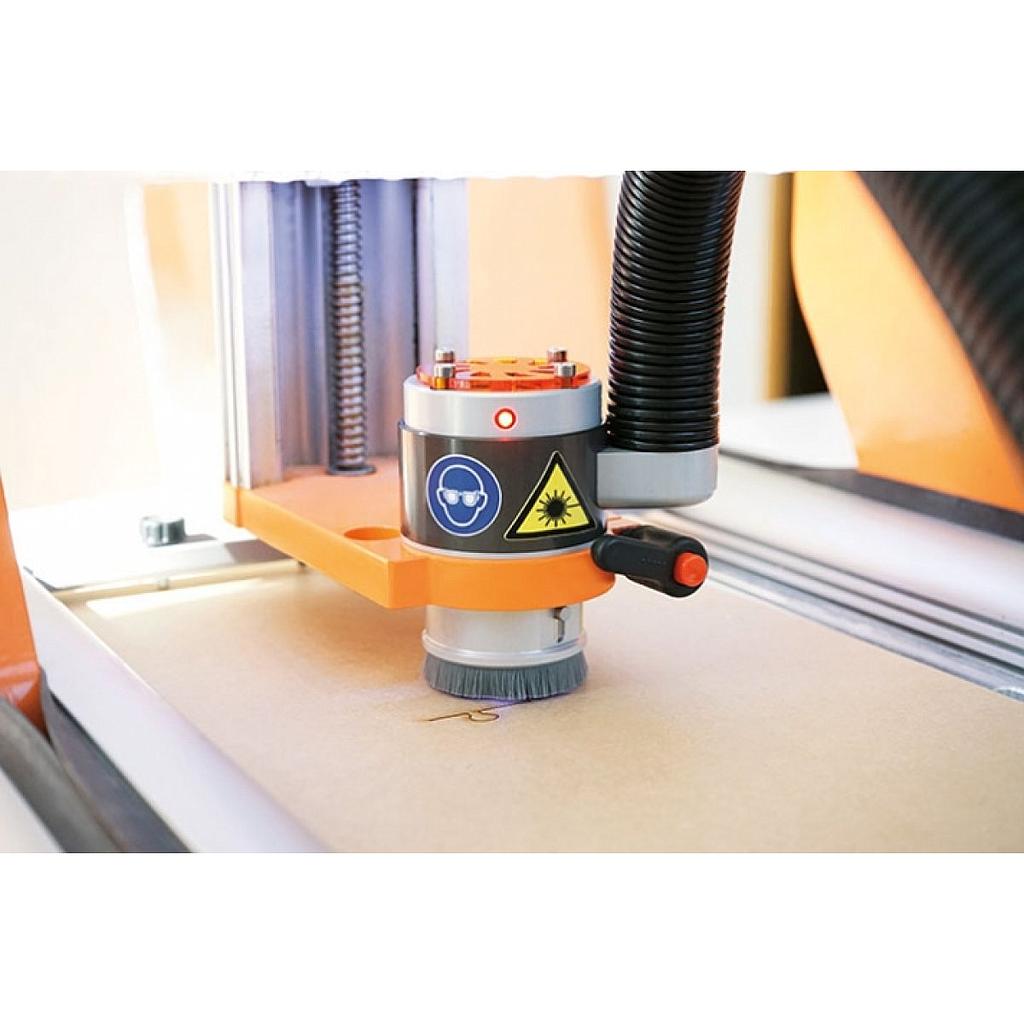

    Some jobs are best suited for a laser rather than a rotary tool.  The new Stepcraft Laser Engraving Head allows for a non-contact cutting cutting of light materials (e. g. paper, balsa wood, vinyl) and engraving of various materials without requiring a prior clamping. The compact, self-contained head an exhaust air system with fine particle filter, an integrated zero point sensor and a sight protecting brush. The internal airflow keeps the laser’s lens clean and provides cooling.

    The Laser allows for a non-contact engraving of various materials without requiring a prior clamping and is also able to cut smaller work-pieces. Depending on the method of processing, the intensity of the laser beam can be adjusted on the computer from 0 to 100%. Additionally, the laser not only contains an integrated zero point sensor but an active diode sealing air as well which vacuums the exhaust air and guides it through the fine particle filter. This ensures not only the protection of the laser diode but a simultaneous cooling as well.

    We recommend guiding the filtered exhaust air that is emitted from the laser control unit to an outdoor area using the optionally available Exhaust Air Hose.

    *If you want to use your Laser Engraver with a switch box then you MUST purchase the 2nd layer module add-on to enable it's connectivity and switch it on/off with the Box.

    IMPORTANT NOTE:
    The laser tool is a class 4 laser. Special safety regulations apply. Please read the Operating and Safety Instructions (LINK).

    We can NOT ship the Laser DL445 to you any customer without receiving a signed copy of the Verification of Notice for General Safety Instructions and Declaration of Exemption for the STEPCRAFT Laser DL445.  You will be sent this document via email. to sign and return, upon payment.  This item WILL NOT SHIP without the signed verification form returned to us.  Additionally, a copy of your ID is required.

    Technical Specifications:

    • 3 W laser diode
    • 9-fold safety concept
    • Integrated Zero Point Sensor
    • Vaccum system with fine particle filter
    • Sight Protecting Brush
    • Optional exhaust air hose available by the meter


    Scope of Delivery:

    • 1x Laser Head
    • 1x Control Unit
    • 1x safety goggles
    • 1x 15 pin sub D 15 connection cable
