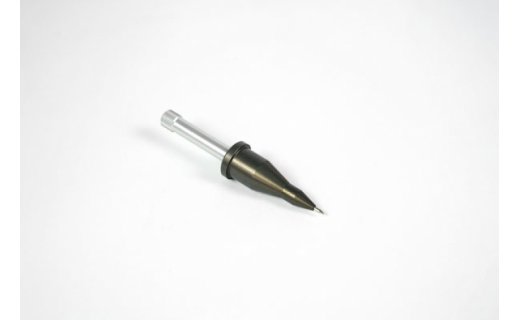

    Plotting Pen

    This small pen enables you to write, draw or simply set markers with your CNC machine. The pen has a clamping surface of  ø 20 mm. It can easily be clamped with our adequate ø 43 mm - ø 20 mm adapter. Thanks to the cushioned lead, it creates a consistently good typeface. The spring power can be adjusted via the handscrew. Suitable for commercially available ball pen refills.

    NOTE: This tool requires the following two tool adapters to successfully work on the STEPCRAFT

    Please see this FAQ: http://cncfaq.us/ufaqs/what-is-the-mini-tool-adapter-p-10120-used-for/

    Part # 10120 – TOOL ADAPTER FROM Ø 20 MM TO Ø 8 MM FOR MINI TOOLS – $14.99

    Part # 10107 – TOOL ADAPTER FROM Ø 43 MM TO Ø 20MM (PROXXON)- $19.99


    Scope of Delivery:

    • 1x CNC Pen
    • 1x Stainless steel refill, black
